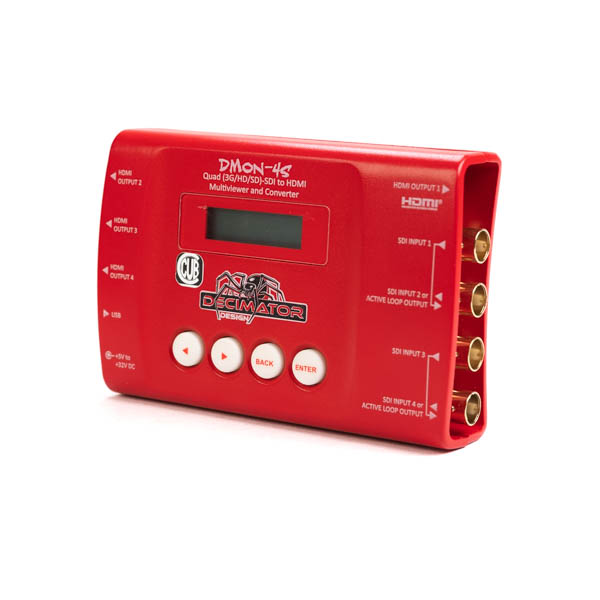

Decimator DMON-4S
Quad (3G/HD/SD)-SDI vers HDMI Multiviewer et convertisseur
Inclus dans la location :
- Convertisseur
- Alimentation
Accessoires en option :

Multiviewer et Convertisseur SDI 3G pour 4 sources.

Description complète

Multiviewer et Convertisseur SDI 3G pour 4 sources.

Fiche Technique
INPUTS :
- Up to 4 x (3G/HD/SD)-SDI Inputs
- Input Equalization > 100M using Belden 1694A
- USB for control and updates
OUTPUTS :
- 4 x mini HDMI Type C
- Optional SDI Active Loop Out of inputs 1 and/or input 3
SDI INPUT FORMATS :
3G:SMPTE 424M@2.97 and 2.967Gb/s :
- 1080p@60/59.94/50Hz HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
- 1080i@60/59.94/50Hz • 1080p/psf@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25/24/23.98Hz
HDMI OUTPUT FORMATS :
- 1080p@60/59.94/50Hz
- 1080i@60/59.94/50Hz
- 1080p@30/29.97/25/24/23.98Hz
- 720p@60/59.94/50/30/29.97/25
POWER : +5V to +32V DC, 6 Wat
